Qs 138 v3 70h / Fardriver Nd96680 Kit

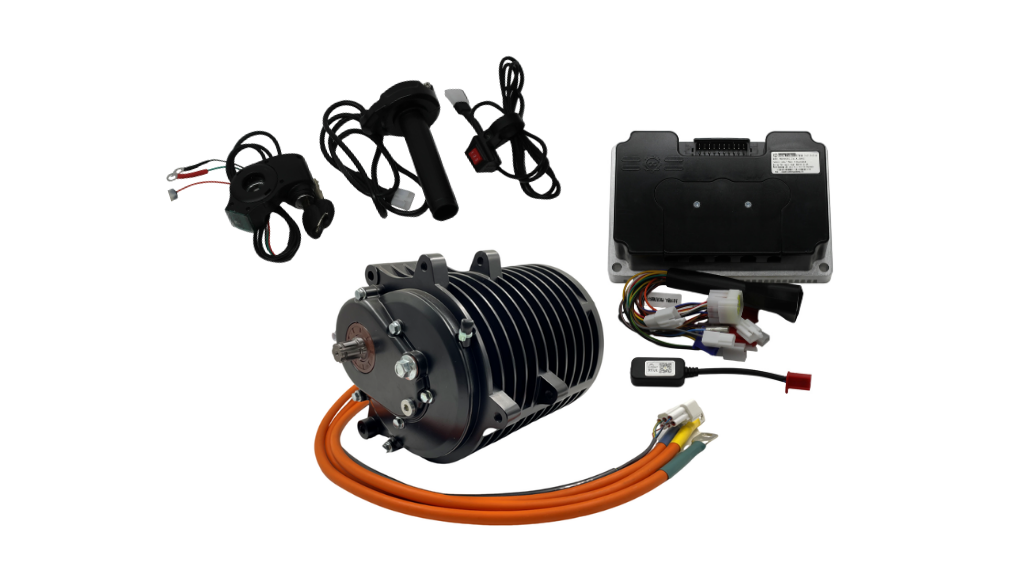

Package includes-

Motor:

1pc Qs138 v3 70h motor

1pc 14t 428 sprocket with retaining clip

Controller:

1pc Fardriver Nd96680 controller

1pc controller wiring harness

1pc Bluetooth Dongle

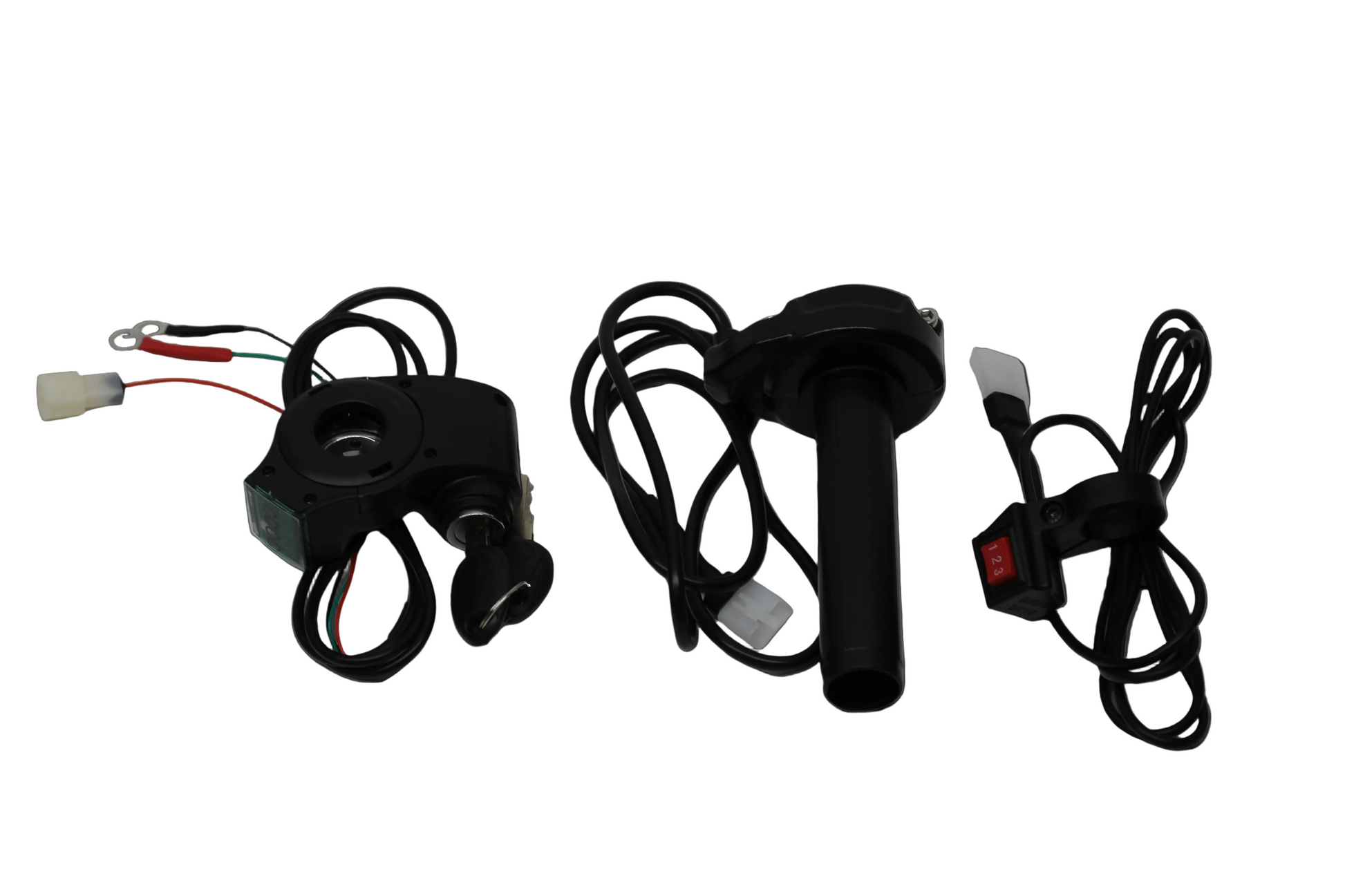

Wiring Kit:

1pc surron throttle

1pc key switch / volt meter

1pc 3-speed mode switch

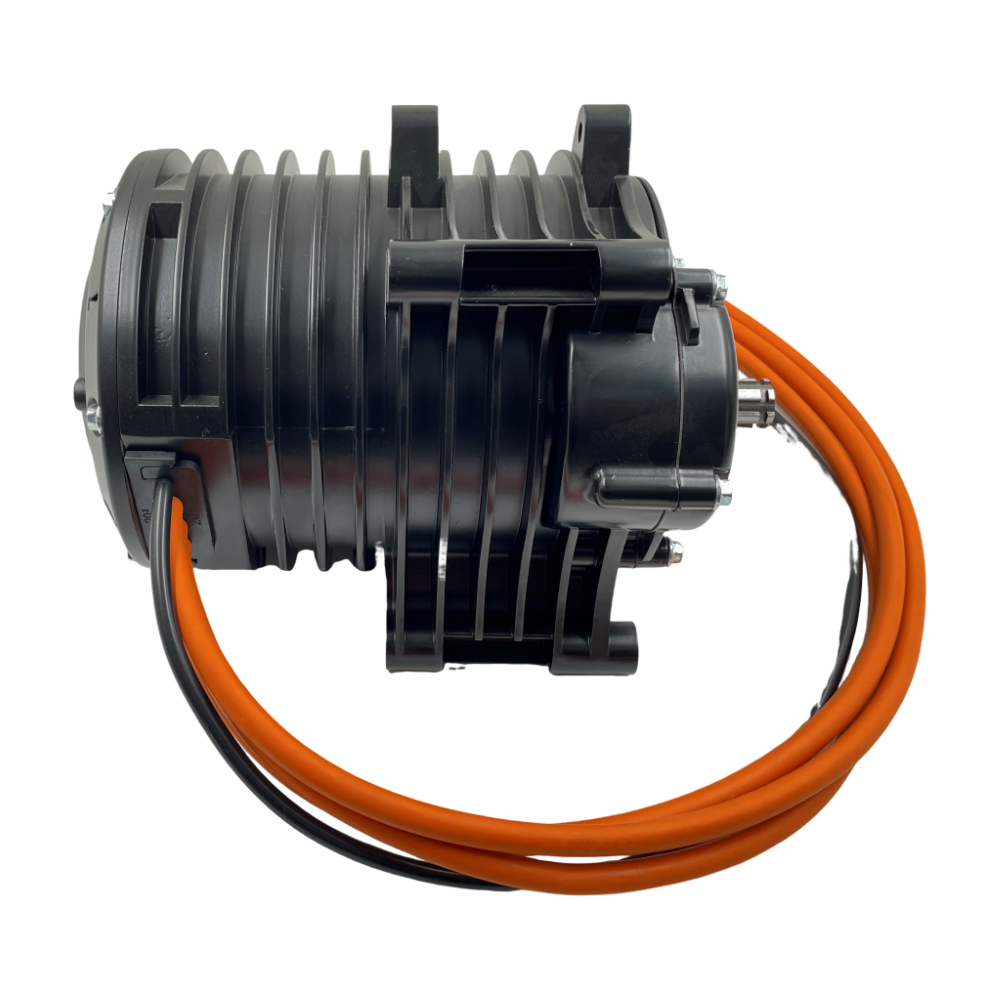

About this Motor-

This is easily the most popular motor for electric conversions, and there’s a reason for it. It’s very versatile and can be used on anything from Go-karts to street bikes to dirt bikes. It is quite simple to mount compared to other motors on the market, and due to its popularity, it has a vast range of aftermarket parts available, including mounts and sprockets. Its internal gear reduction means you can run OEM rear sprockets on most applications.

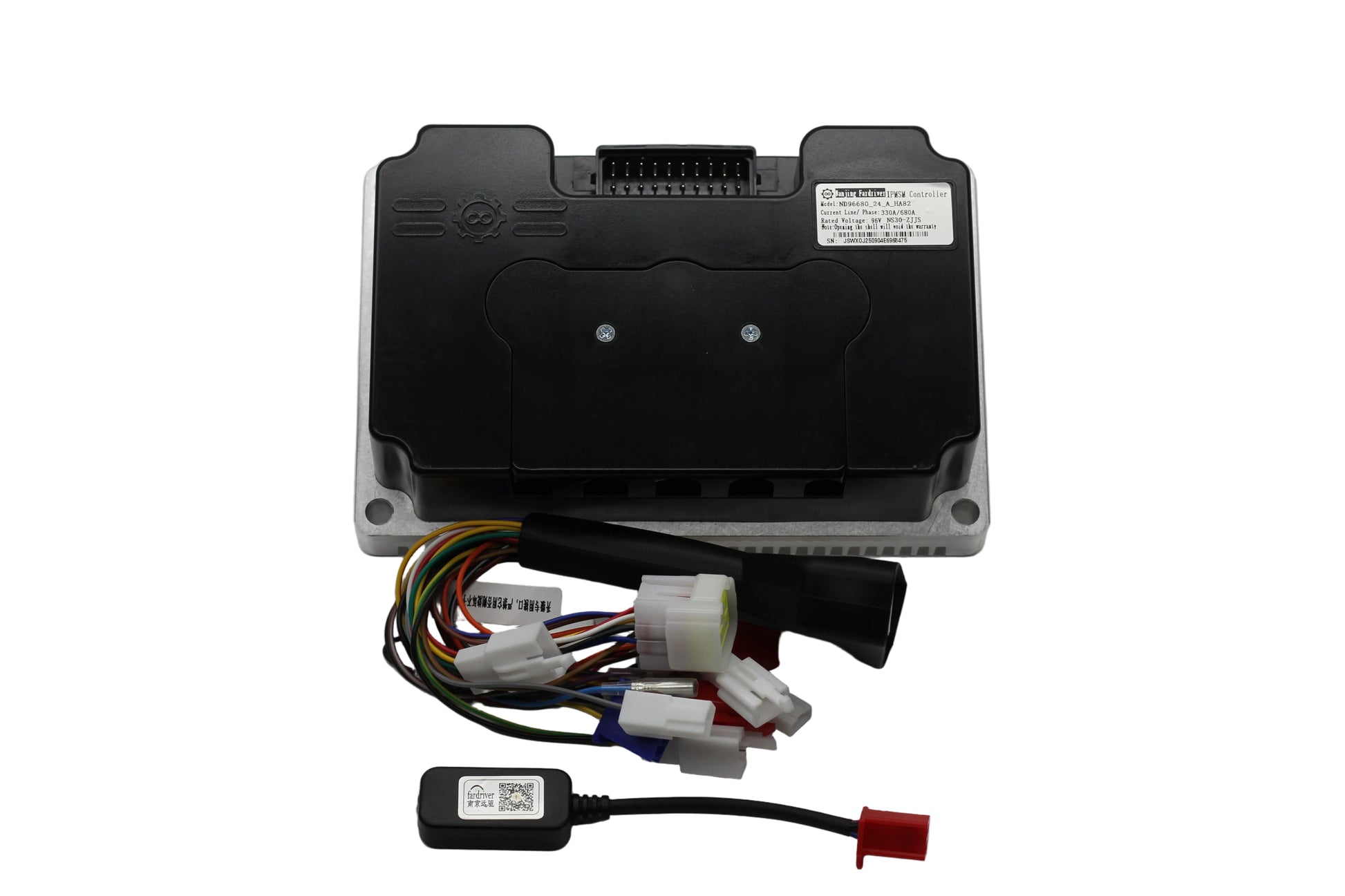

About this Controller-

Operates on 72v, 84v, and 96v nominal voltage

Delivers 330 Line Amps and 680 Phase Amps

This controller is the perfect mix of high power output and affordable price. Its small form factor makes it easy to find a mounting place. This controller is by far the best in its class!

Motor Specs directly from Qs-

19:45 gear reduction
Power: 3000W (maximum 11KW, sometimes can reach 15KW)
Recommended Voltage: 72V
Rated peak RPM: 1900rpm – 2500rpm (after reduction)
Torque: 35N.m to 55N.m.
Maximum Torque: 120+nm after gear reduction
Maximum Efficiency: 92%
Waterproof Grade: IP54.
Weight: 12.3kgs (27 lbs)

Our findings-

Although Qs rates this motor for 11000w, we find that they are capable of much more. We have been able to push upwards of 32kw on 96v but have found the limiting factor of this motor is heat. As it’s an air-cooled motor, sustained hard riding at 25kw+ can and will overheat this motor. But for us intermediate riders, it tends to be a non-issue.

Although this motor is rated for 72v, we prefer to run 84v or 96v.

Disclaimer: This motor is rated for 11kw peak. Run more at your own risk. Be sure to monitor motor temperature.

These are Shipped Direct to Consumer

This motor and controller will come directly from the supplier to your door. The wiring kits are shipped separately as they are made by us locally in Washington state.

Shipping Times in the US-

Motor / Controller shipping times (15 - 30 days)

Wiring kit shipping times (5 - 10 days)

Contact us for custom shipping quotes outside of the United States
