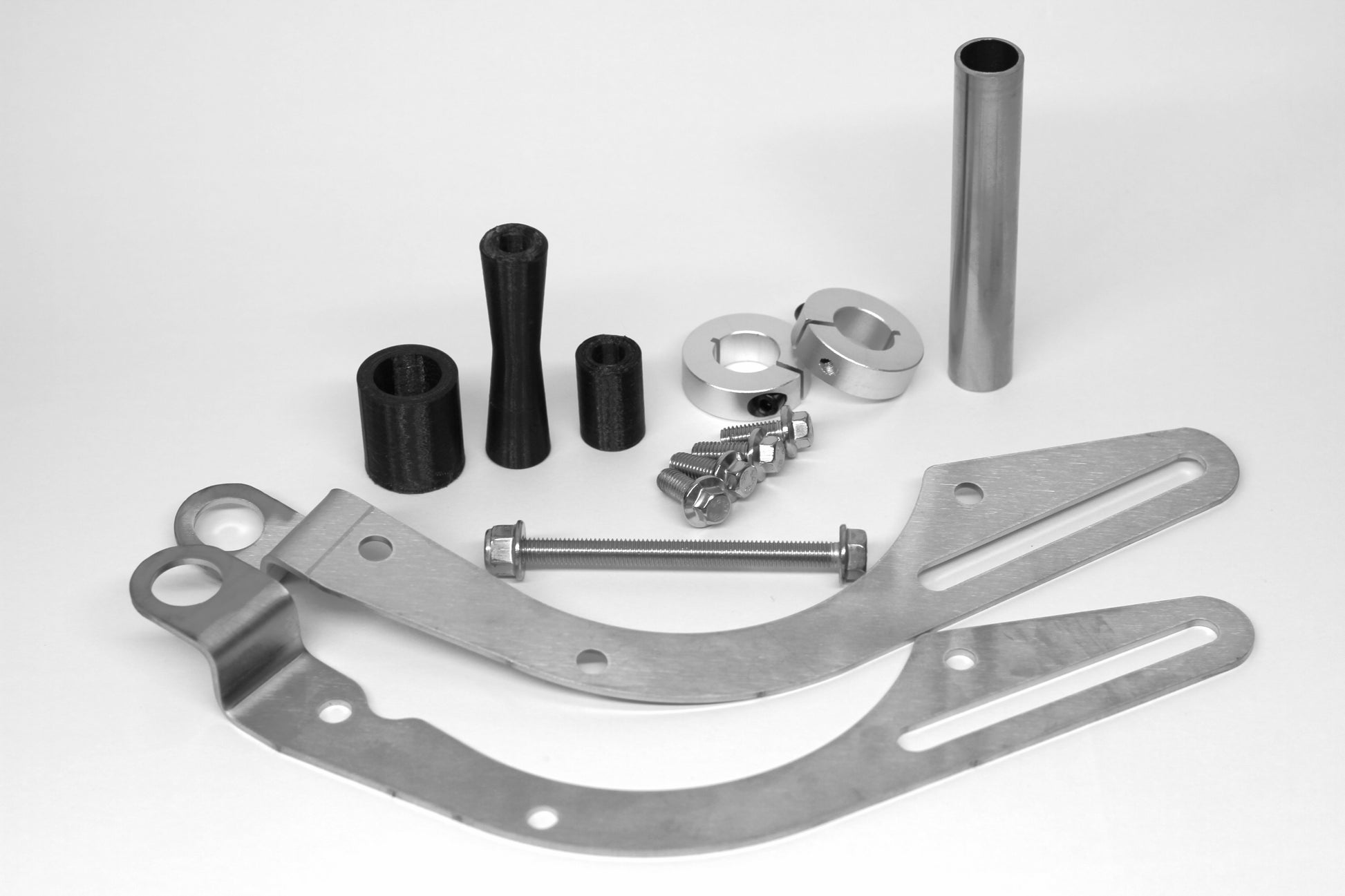

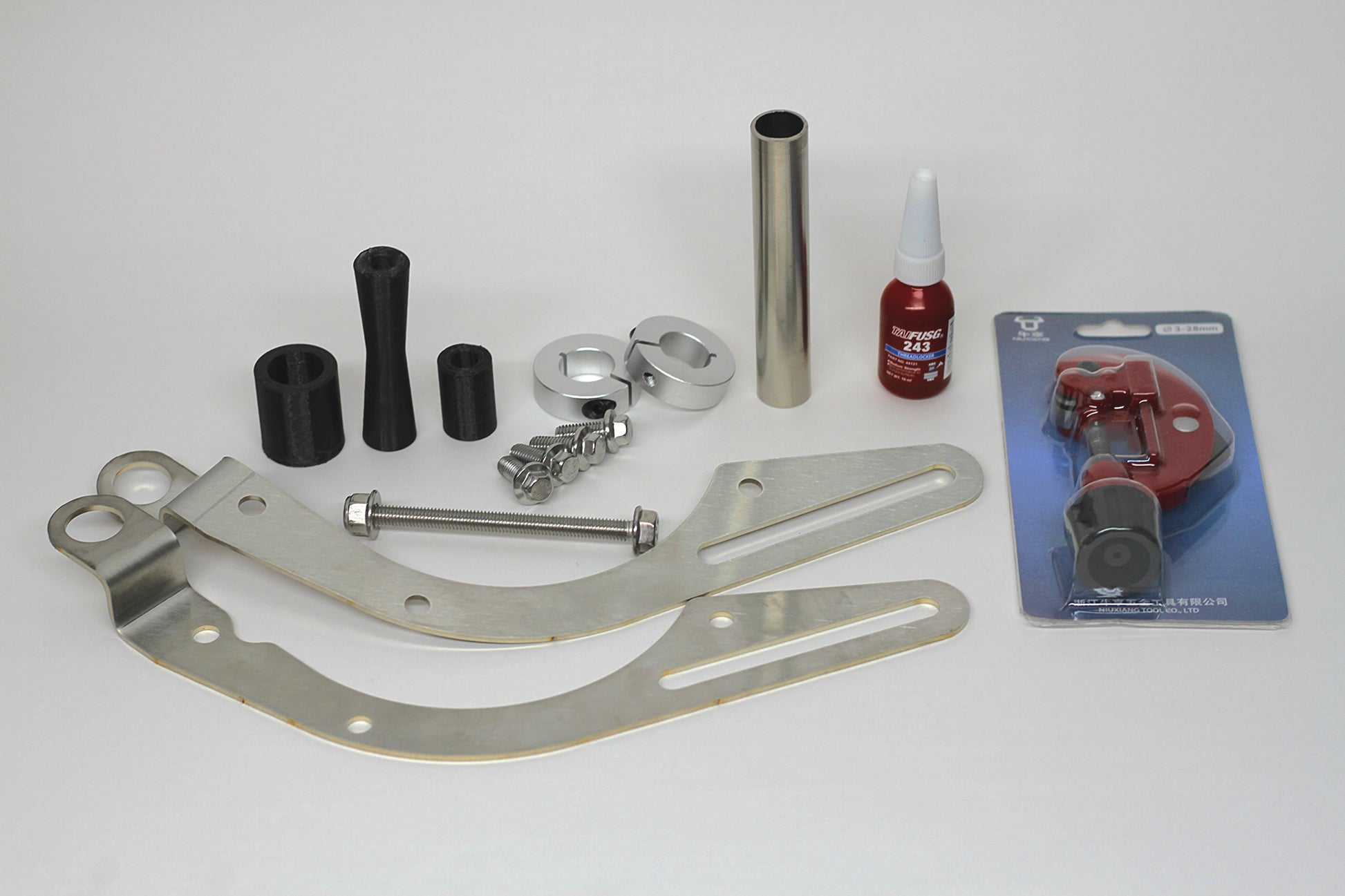

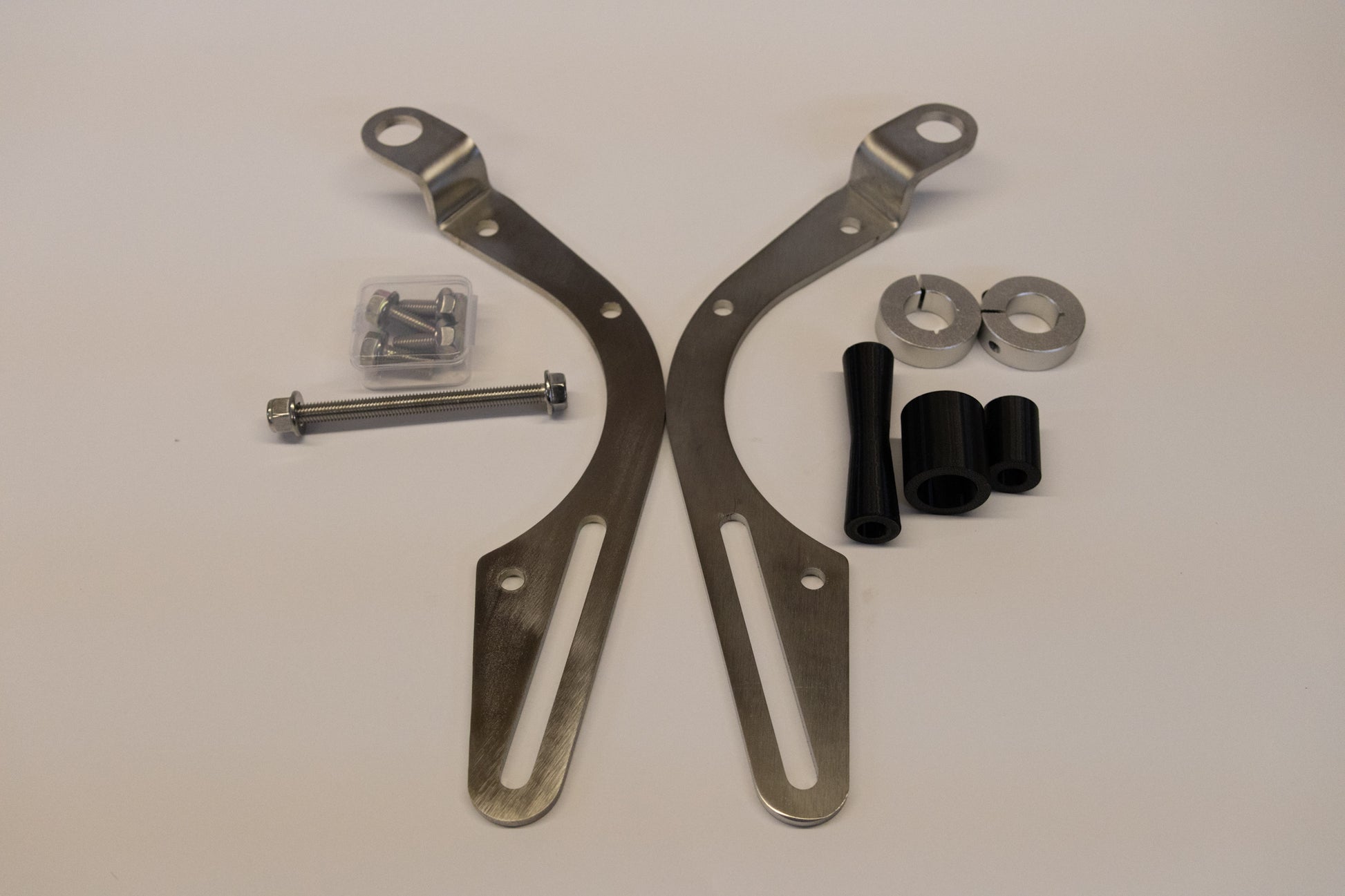

Package Includes-

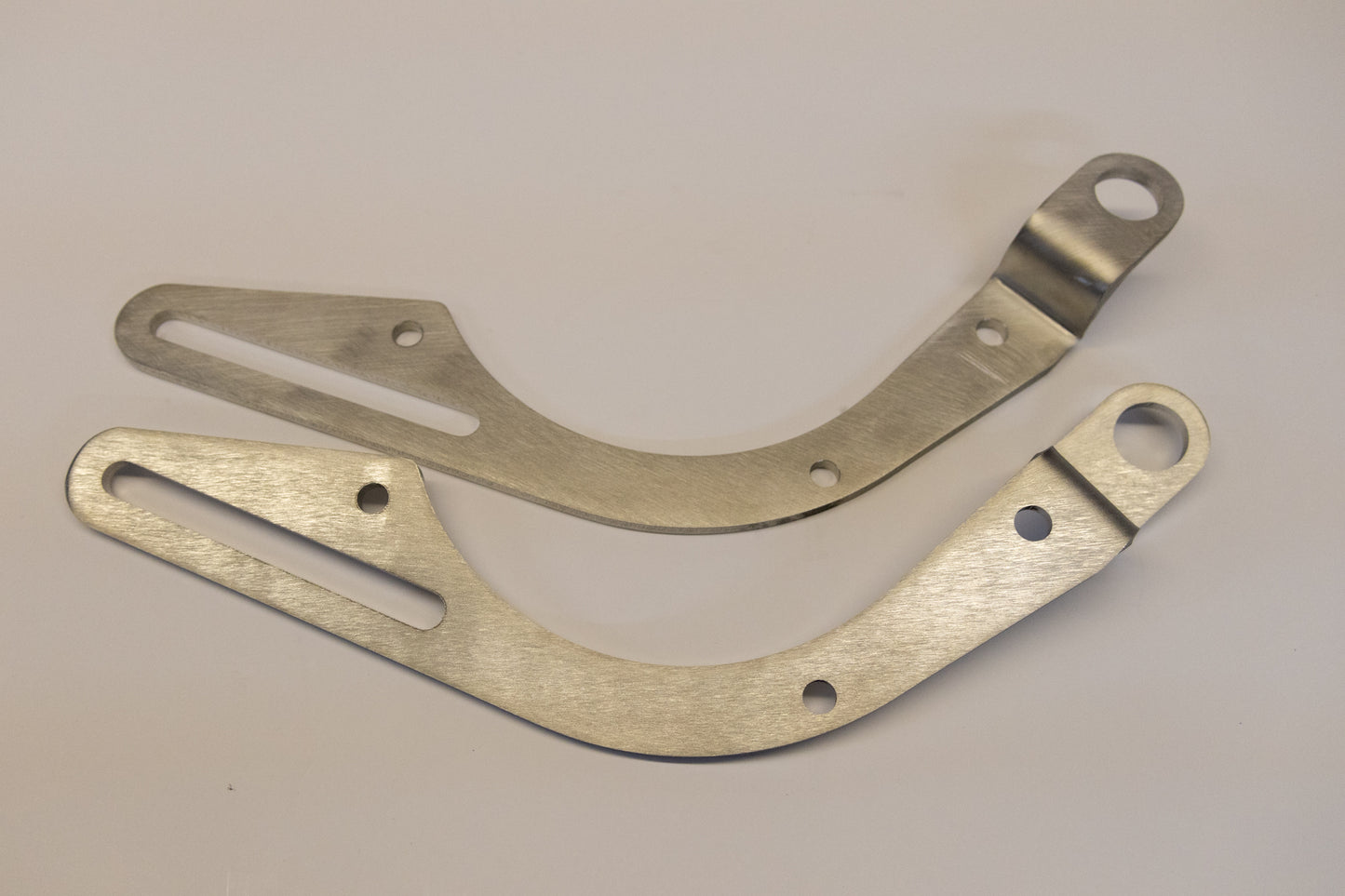

2pc Motor mount brackets
Stainless steel hardware to bolt the brackets to the motor (4pc 30mm m8x1.25 bolts, 1pc 100mm m8x1.25 through bolt with nylon locking nut)
1pc Stainless steel tube (150mm length)
3pc PETG spacers
2pc Aluminum retaining clamps
1pc 10ml bottle blue lock-tight
1pc stainless steel pipe cutter
*Motor NOT Included but can be purchased separately*
What This Fits-
This mount is for the Qs 138 v3 70h motor and is designed to fit MOST full-size motocross bikes. No bike is the same, and there is NO GUARENTEED fit, so please verify all measurements before purchasing.
Designed to fit bikes with a (17mm) diameter swingarm bolt and a (10mm) diameter front motor mount bolt.

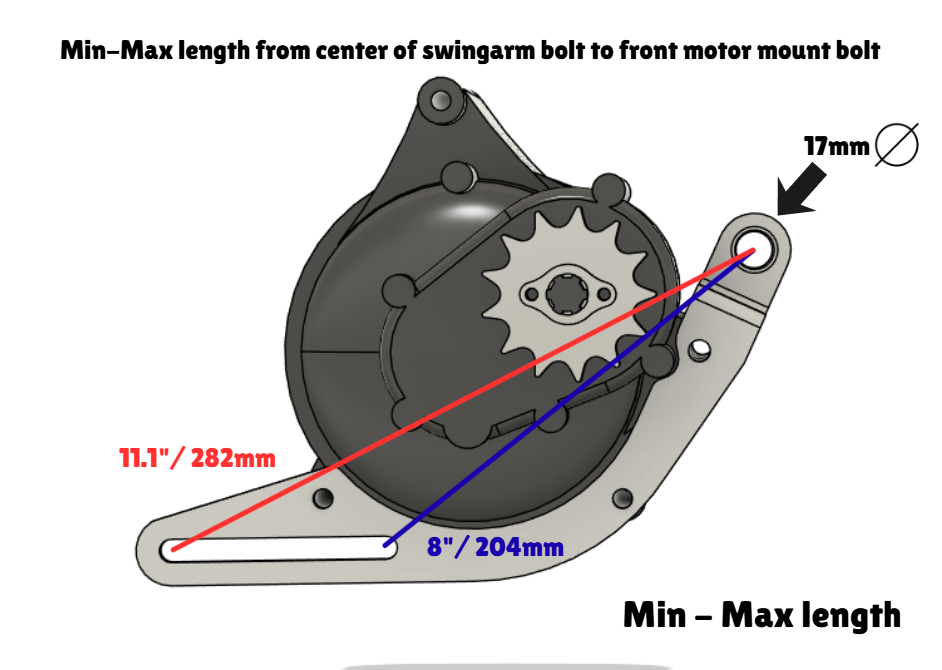

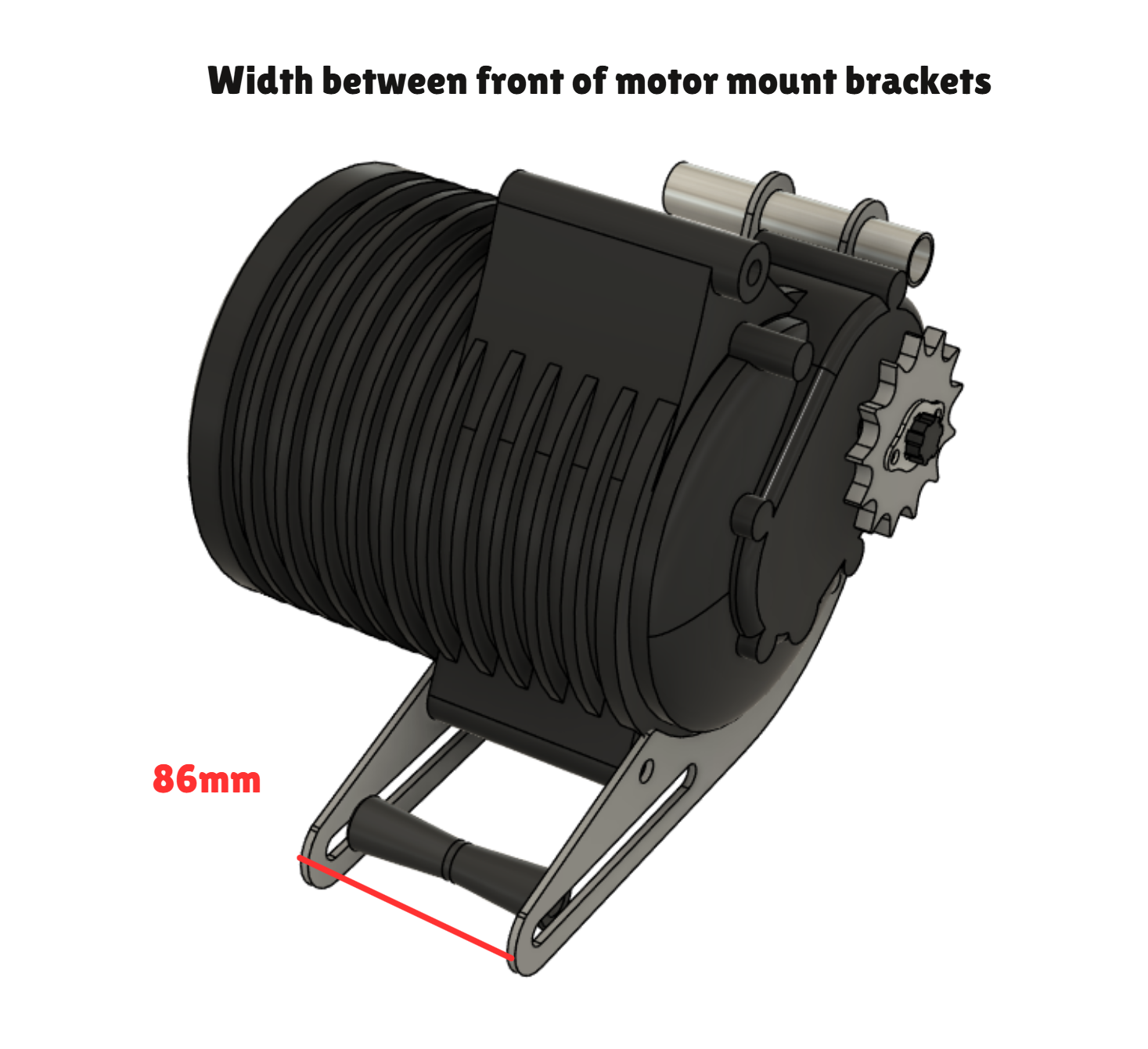

Measure from the center point of your swingarm bolt to the center point of the front motor mount bolt. Your measurement needs to be somewhere between (204mm-282mm) for this mount to fit properly. Also, measure the width between your front motor mount tabs on your frame. They need to be at least (86mm) apart, or this mount will not fit properly. If you need custom mounts made, please email us with your dimensions, and we can work with you to design mounts for your ride.
Installation Process-
Please view the YouTube video for the installation process (YouTube Video)
The future of this product-
We are currently working on universal mounts for 85cc motocross bikes using this motor. And we will be coming out with mounts for different motors soon.
