Qs 165 v3 60h / Fardriver Nd961000 Kit

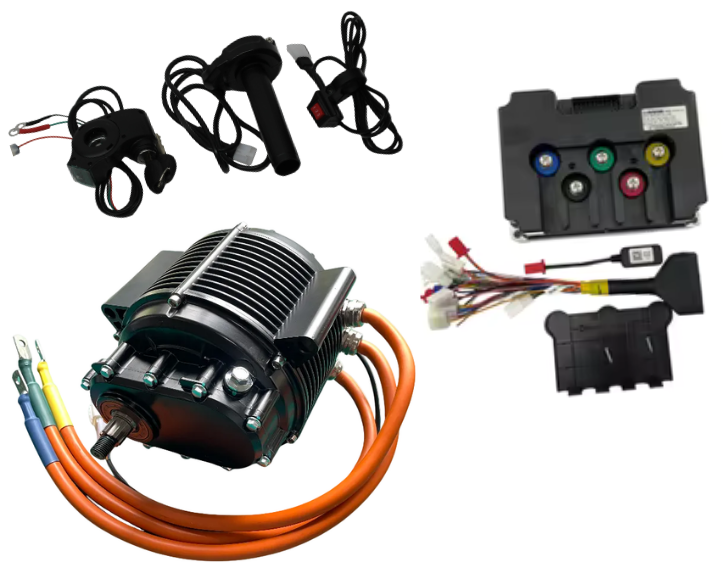

Package includes-

Motor:

1pc Qs165 v3 60h motor

1pc 14t 428 sprocket

Controller:

1pc Fardriver Nd961000 controller

1pc controller wiring harness

1pc Bluetooth Dongle

Wiring Kit:

1pc surron throttle

1pc key switch / volt meter

1pc 3-speed mode switch

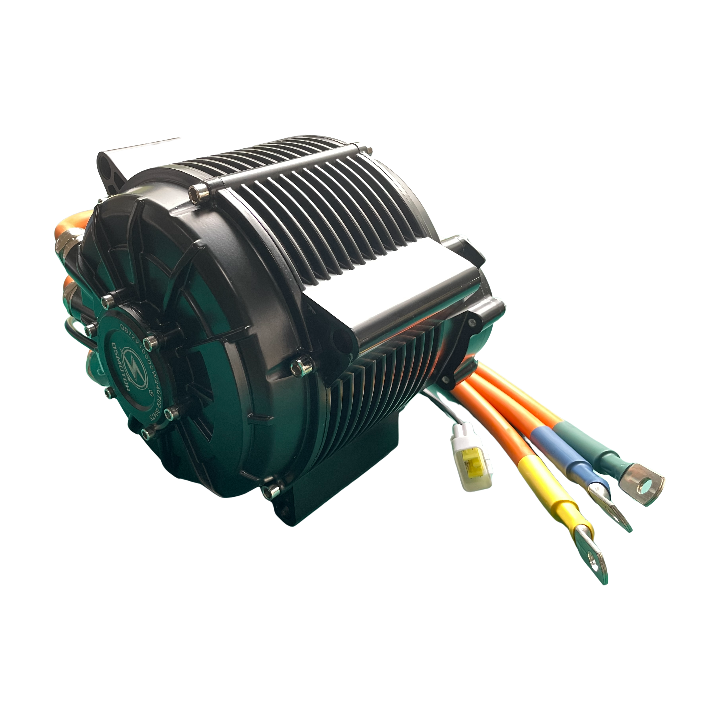

About this Motor-

This is the new crazy powertrain for electric conversions. Delivering peaks of 45kw/60hp this setup will walk any gas bike on the market with ease. It’s very versatile and can be used on anything from Go-karts to street bikes to dirt bikes. And Its internal gear reduction means you can run OEM rear sprockets on most applications.

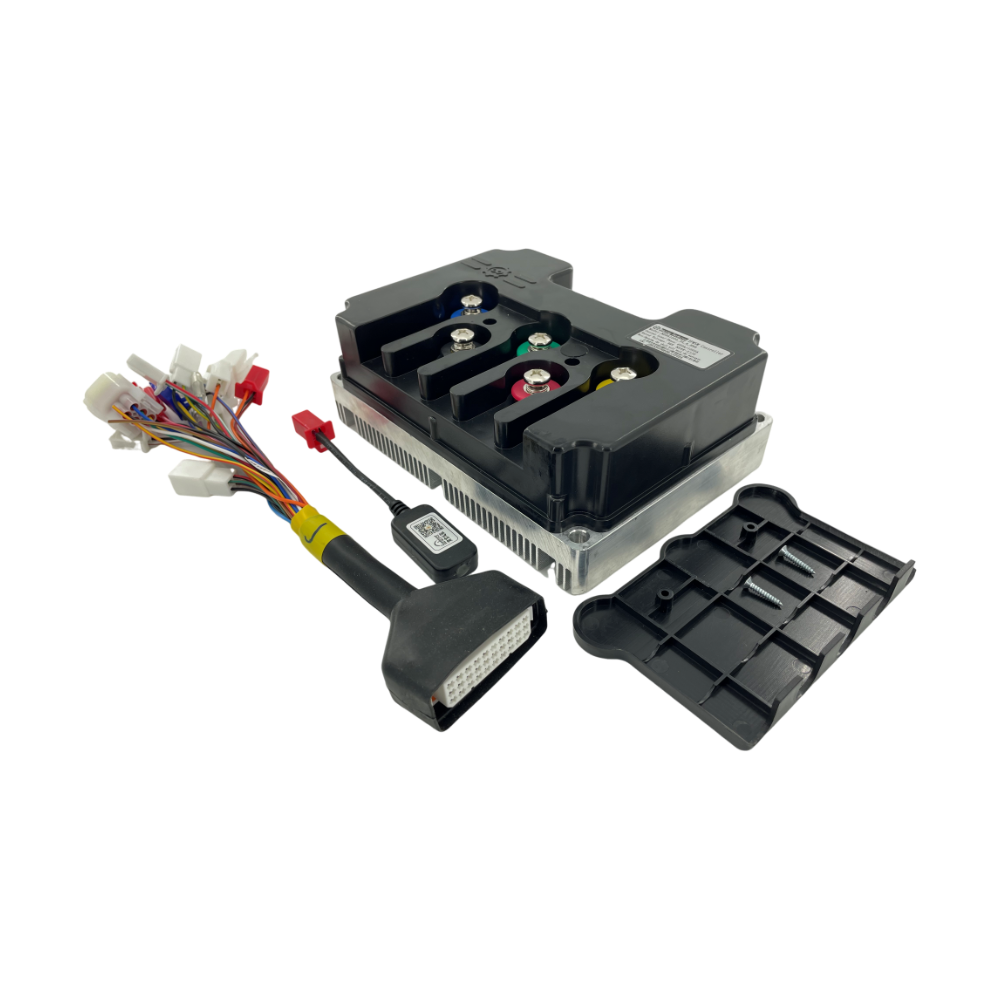

About this Controller-

Operates on 72v, 84v, and 96v nominal voltage

Delivers 450 Line Amps and 1000 Phase Amps

This controller is the next step up from the 96680. It outputs some serious power for its size. With the perfect mix of high power output and affordable price!

Motor Specs directly from Qs-

19:45 gear reduction
Power: 10kw (maximum 20KW, sometimes can reach 25KW)
Recommended Voltage: 72V
Rated peak RPM: 1900rpm – 2500rpm (after reduction)
Torque: 50N.m to 60N.m.
Maximum Torque: 140+nm after gear reduction
Maximum Efficiency: 94%
Waterproof Grade: IP67.
Weight: 14.9kgs (32.8lbs)

Our findings-

Although Qs rates this motor for 25kw, we find that they are capable of much more. We have been able to achieve peaks of 45kw on 96v but have found the limiting factor of this motor is heat. As it’s an air-cooled motor, sustained hard riding at 30kw+ can overheat this motor.

Although this motor is rated for 72v, we prefer to run 96v or more.

Disclaimer: This motor is rated for 25kw peak. Run more at your own risk. And be sure to monitor motor temperature.

These are Shipped Direct to Consumer

This motor and controller will come directly from the manufacturer to your door. The wiring kits are shipped separately as they are made by us locally in Washington state.

Shipping Times in the US-

Motor / Controller shipping times (15 - 30 days)

Wiring kit shipping times (5 - 10 days)

Contact us for custom shipping quotes outside of the United States
