Universal Fardriver ND96680 Controller Mounts

About this product-

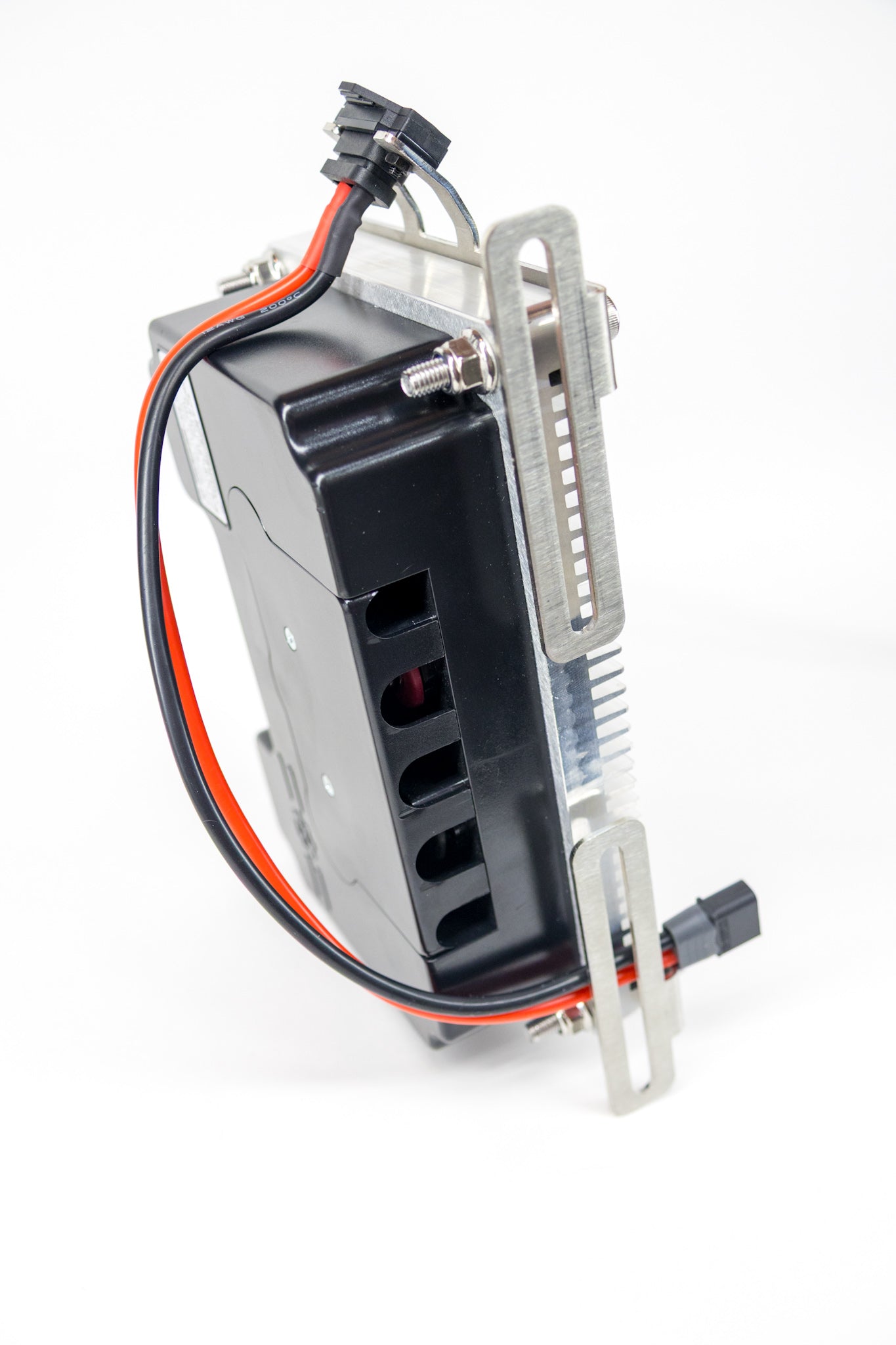

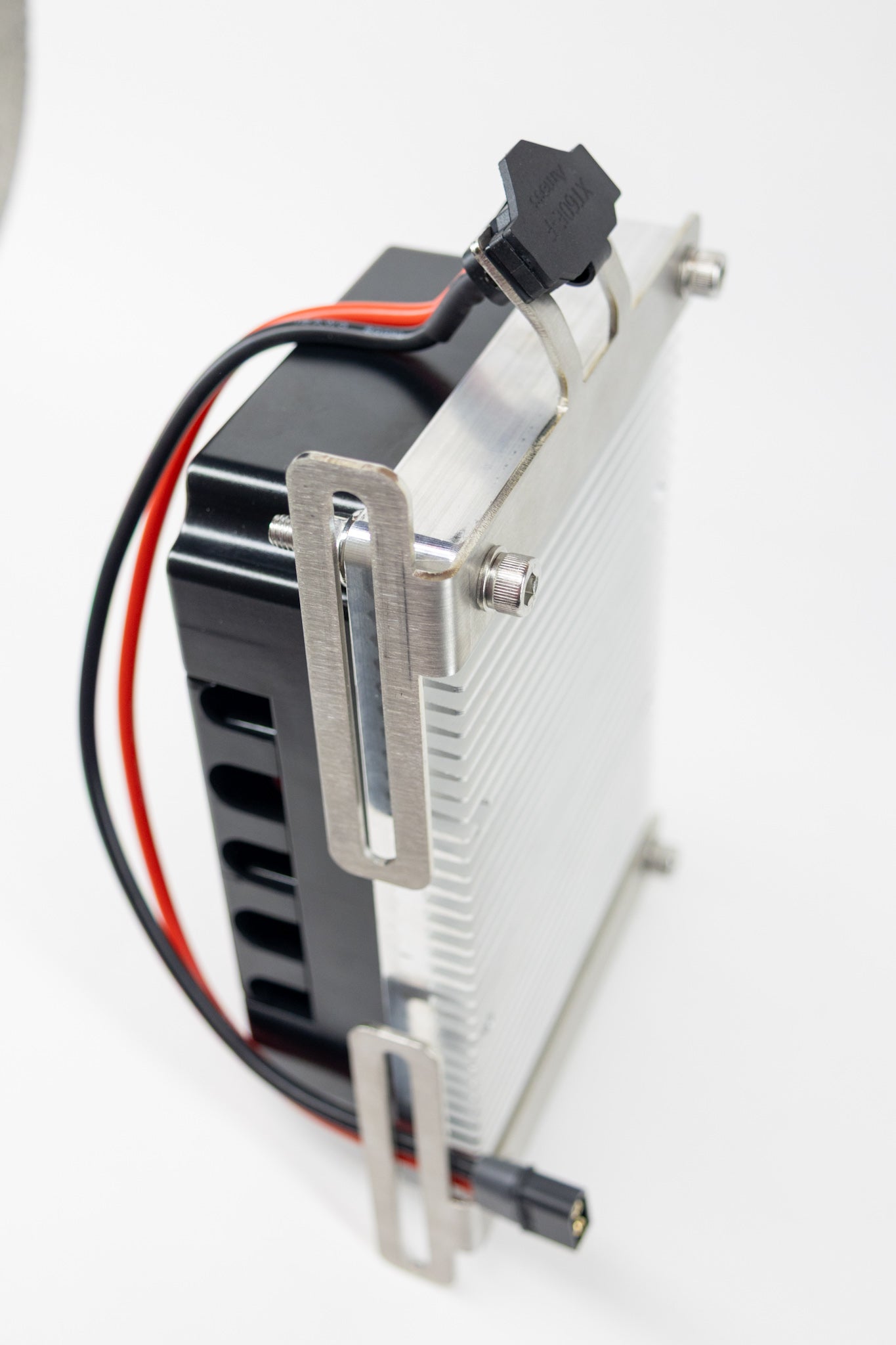

This is a universal controller mount for the Fardriver ND96680 controller. It bolts up directly to the original radiator mounting location on the left side of the frame. We chose to mount it in this location because it helps funnel airflow over the heatsink, ensuring optimal cooling. We have experimented with different mount locations, but we always run into overheating issues due to the power we run. Turns out the original creators of the bike know where the best cooling spot is. We also added a charger port to clean up and simplify the process of building your ride.

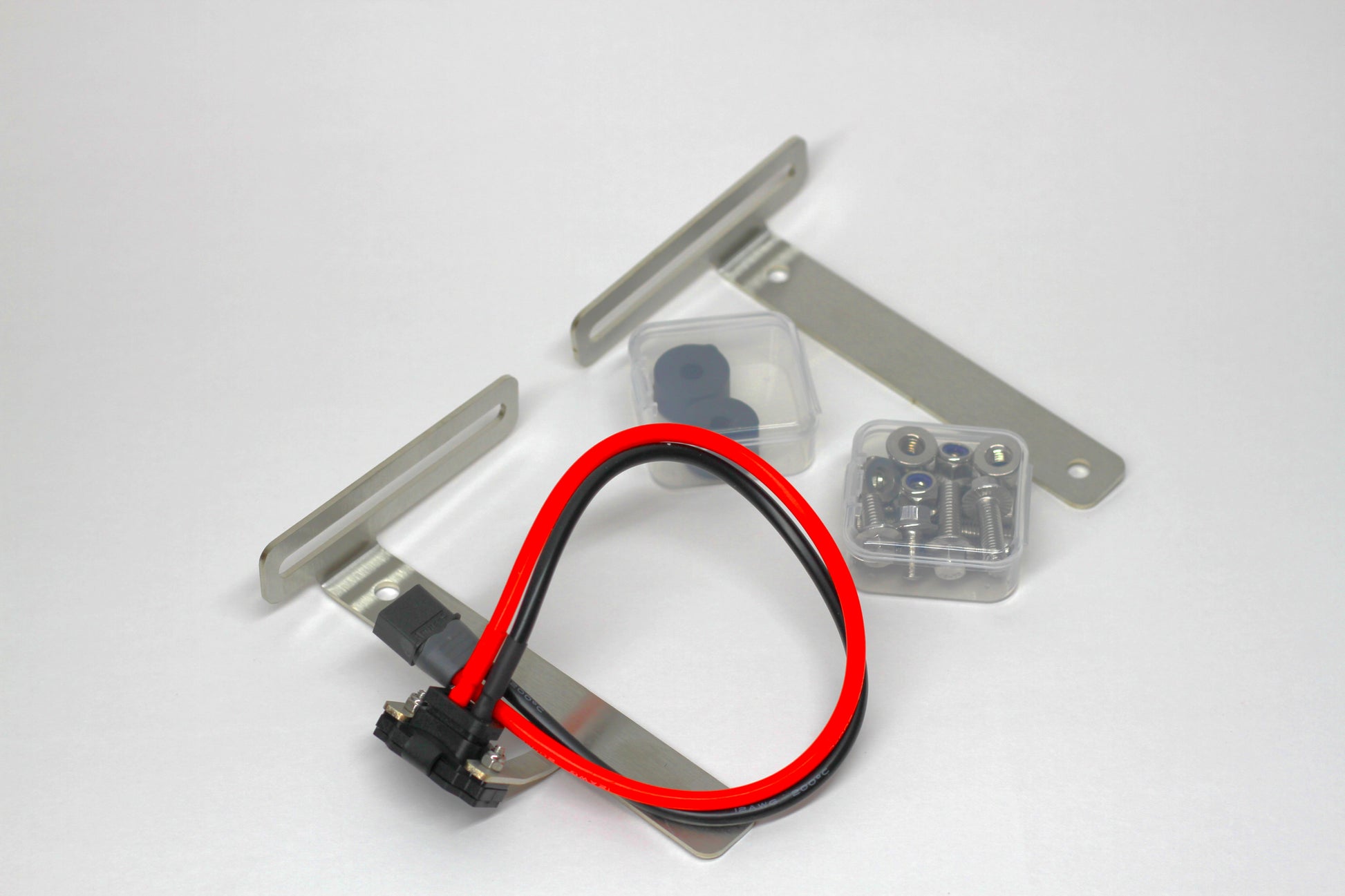

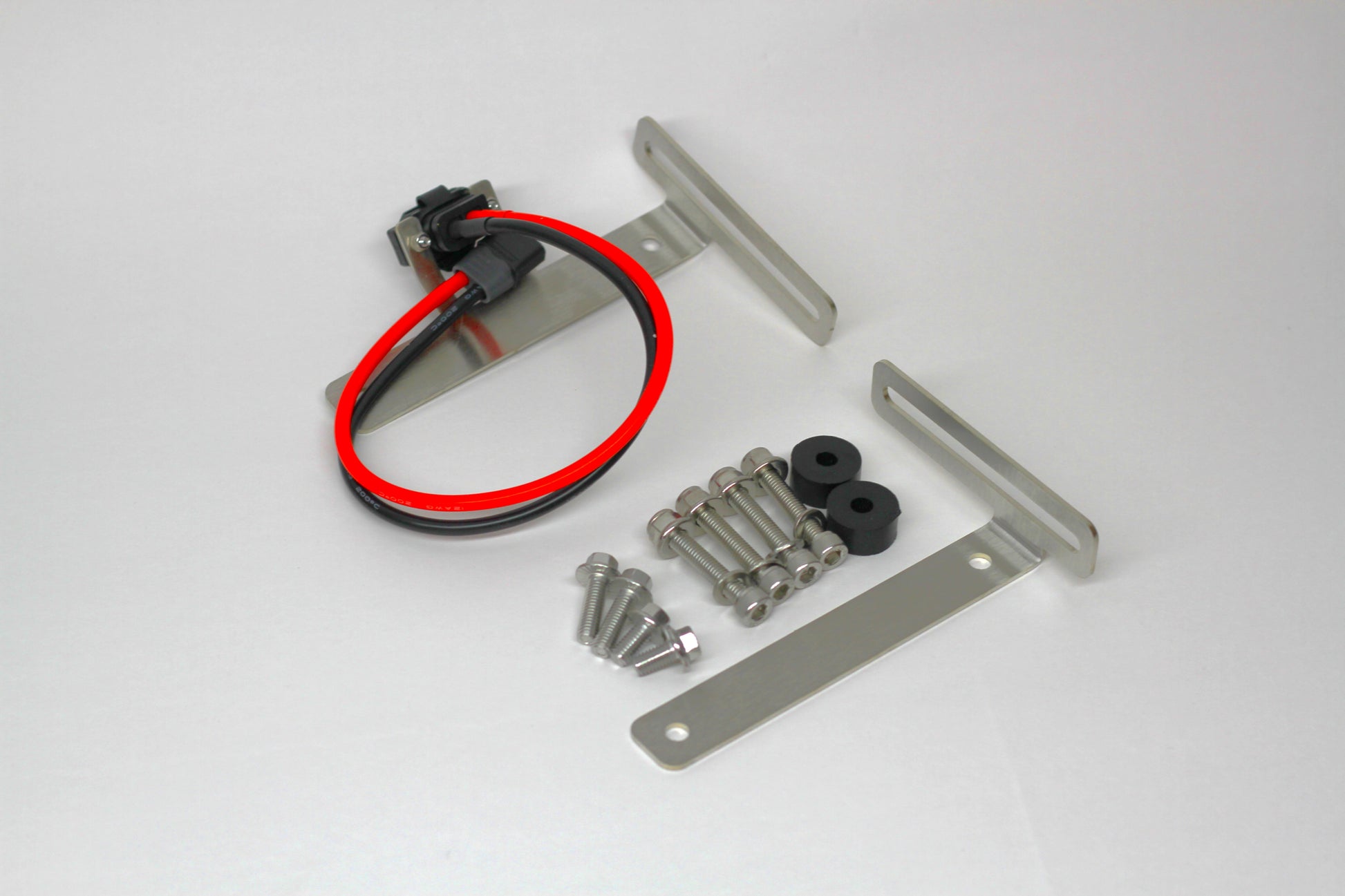

Package Includes-

-Top and bottom controller mounting brackets (Designed for left side of the frame)

-All necessary mounting hardware (4pc 30mm m6 through bolts, 4pc m6 nylon locking nuts, 4pc m6 washers, 2pc 20mm m6 bolts, 2pc 12 mm m6 bolts, 2pc rubber bushings)

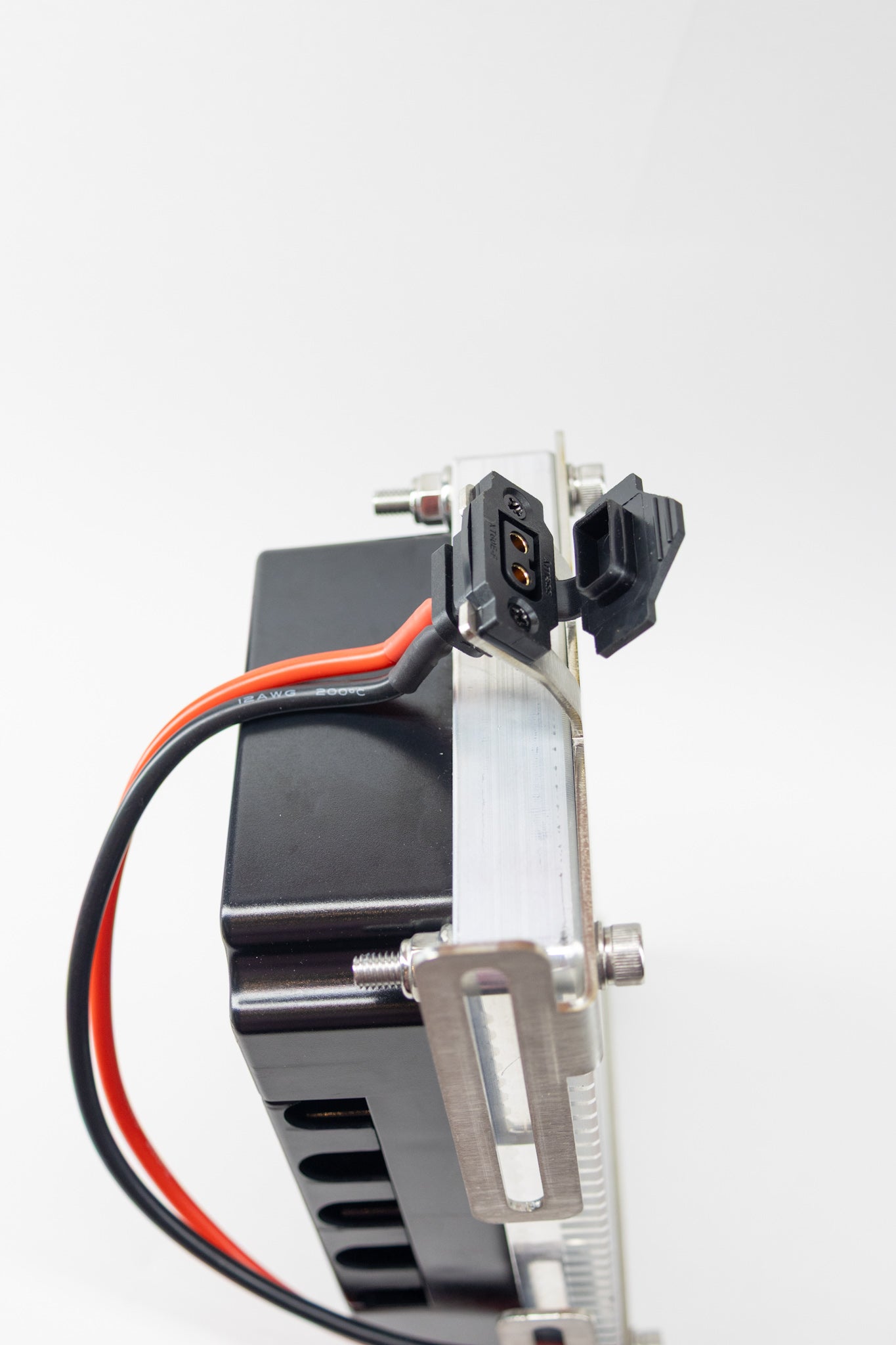

-1pc charger port (Charger port is a Female xt60, Plug for the battery is a Male xt60, 30cm cable length)

*Controller NOT Included*

What Bikes Does This Mount Work With?

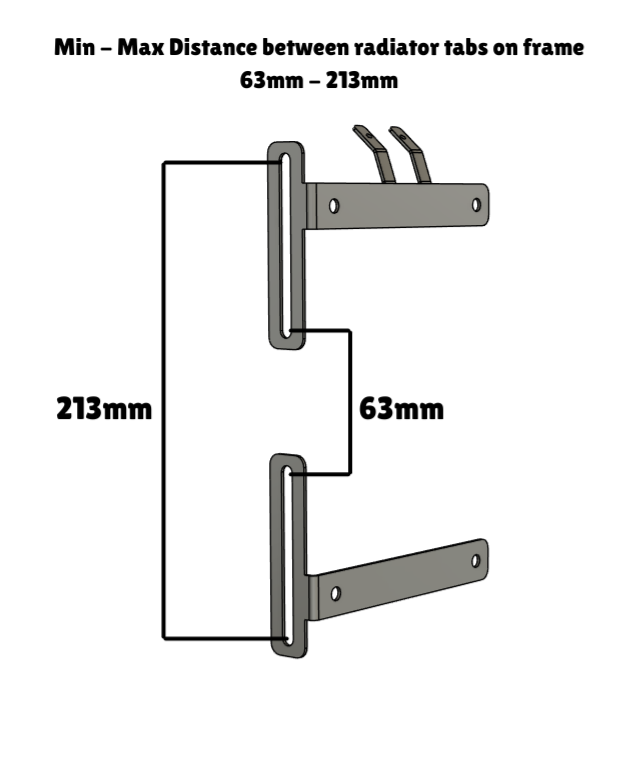

The Universal 96680 mounts were specifically designed to fit full-size motocross bikes. Ranging from 125s to 250s to 450s. These mounts utilize the original radiator mounting tabs. Please verify all measurements before purchasing. It is up to you to determine compatibility with your ride. All measurements can be found in the images.
